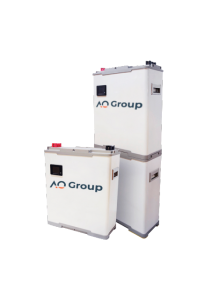

AOE DYNAMO 4810
The AoE Dynamo 4810 is one of our premium level Lithium-ion/Lithium-iron(LiFePO4) batteries for home and business use.
This is a 48-volt based system, perfectly matched to a larger energy requirement in response to load shedding. It can be stacked ten times to cater for the largest workloads.
The cells are A-Grade Energy Storage System prismatic cells from one ofthe world leaders in prismatic cells. These cells are computer matchedfor the longest life. The intelligent BMS communicates with 95% of theworld’s inverters and balances the cells throughout their lifespan.
The shell is made of a high-Quality Aluminium Magnesium alloy and isanti-corrosive and durable. It is dustproof and designed to last manyyears. The Dynamo 4815, the system is capable of 5000W of throughputfor 3 hours or 3750W for 4 hours, with both scenarios ready to go againin less than 2 hours.
Used in this way, the batteries will last for morethan 6000 cycles. They have a 10-year warranty (manufacturer-guaranteed grade-A barcoded cells
AOE DYNAMO 4810 SPECIFICATIONS DOCUMENT
| Nominal Capacity | 200Ah/300Ah |
| Nominal Voltage | 48V 51.2V) |
| Capacity(kWh) | 10.240kWh |
| INPUT | |
| Full Charge Voltage | 56V-60V |
| Maximum Charging Voltage | 90V |
| Input Voltage Range | 60V-100V |
| Continuously Use Input Current | 100A |
| Maximum Solar Panel Input Current | 100A |
| OUTPUT | |
| Continuously Use Output Current | 100A |
| Discharge Cut-off Voltage | 38V-48V |
| Over-Discharge Delay Protection | 1000ms |
| Short Circuit Protection Delay | 300us |
| Short Circuit Protection Recover | Disconnect load |
| Cell type | LiFePO4 Battery/LFP Barcoded Grade-A Cells |
| Storage temperature range | Short-Term -20℃-40℃ (Within 1 month) Long-term10℃-35℃ (Within 1 year) |
| Operating temperature range | -15℃-60℃ |
| Recommended temperature range | 10℃-40℃ |
| Self-Discharge (25°) | ＜3％/Month |
| Depth of discharge | ＞80％ |
| C-rate Discharge | <0.8C |
| Cycle Life | ＞6000Time(＜0.5C) |
| Certification Standards | UN38.3/CE/MSDS/DGM |
| Warranty | 5 years on hardware, 10 years on cells |
| Communication | RS485 |
| Product Size | 614±2×507±2×212±2mm |
| Packaging Size | 668±2×645±2×713±2mm |
